Vanagon to Golf 4-cyl gas conversions

By Rob Winterkorn

"Busbie 1" was my first Vanagon. It's a 1984 model I picked up from a local repair shop that inherited it from the original owners. They took the engine, and I got the Van with the transmission stuck in 3rd gear.

The goal of this project was to put together reliable transportation for as little money as possible. Beauty was not a factor. My conversion cost me well under $1000.00 including donor car and KEP kit. So please, go easy on me in the beauty department.

Note: Click on thumbnails for expanded images!

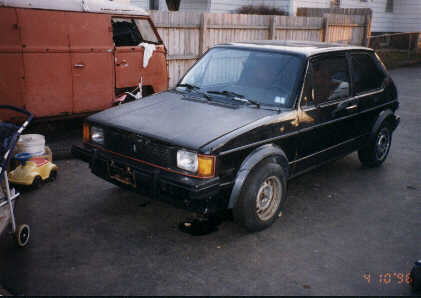

1984 GTI 1984 GTI The donor was a 1984 GTI with a little over 110,000 miles. I recommend that you try to get a complete car for your project. I removed the engine with all the wiring harnesses hooked up, cutting the car in some places to leave just a few ground and hot wires.

My main motor mount was made from a 3"x2" channel with a Type 2 transmission hanger welded to it. It went through 2 small 4" windows i cut on the left and right sides of the engine compartment. I then used the 2 rear motor mounts from the original wasserboxer engine. I bent the "U" shaped channel flat. The stud end went to the 3"x2" mounted to the frame rails. The only other mount used for the engine was the timing belt side mount.

Similar mount in Type II bus Once the engine is in the van on this center mount, it can be easily moved around front to back and left to right. I welded a plate to the back inside of the van just under the license plate window. From that I had 2 removable "L" brackets. A look at my 1.6L Rabbit-powered Type 2 pic shows this.

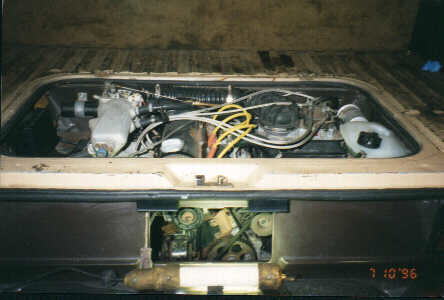

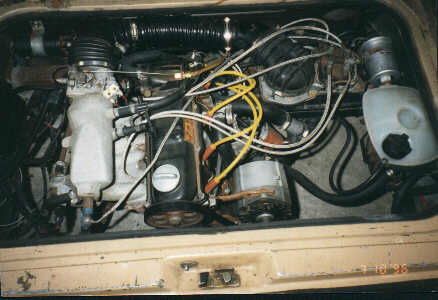

Top view of GTI engine in Van Rear view of GTI engine in Van I went through several different manifolds setting up the exhaust. In my experience, the best to date would be from the VW Fox. The Fox manifold give you an angle towards the front of the van which allows room to make a nice sweep back to hook into the exhaust in the stock Vanagon location.

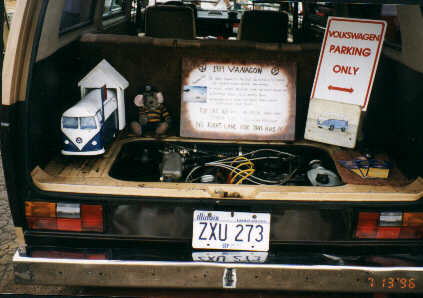

Van at show Van at show I was amazed at the interest at my first show with the van. The most frequent comment was "Why didn't VW do this in the first place?".

On the road I have put close to 100,000 miles on this van since the conversion with no major problems. I get about 20-22 MPG and I have a top speed of just over 100MPH. I can even run at 80-90MPH while pulling my camper!

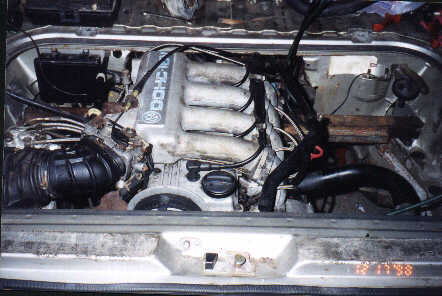

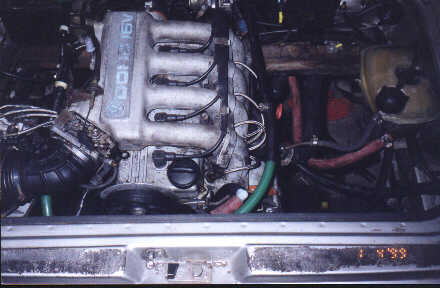

Top view of 16v GTI engine in Van Another view of 16v GTI engine in Van "Busbie 2" is my 1985 7-seater. The engine is a 1.8L from an 1987 16v GTI. I know the talk has been that this is not a good engine choice for the Vanagon. I must agree on two areas: They are still a lot of money and the vibration is more evident. But I paid nothing for my engine, so the price was right! I wouldn't trade the top end acceleration for anything! My next project is a 2.0L 16v from a 1990 Passat going into my 1989 Wolfsburg.

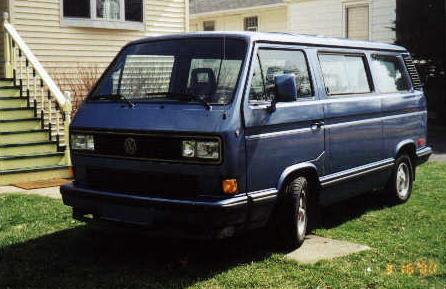

Busbie 4 This is Busbie 4 - A 1989 Wolfsburg Vanagon and my fourth conversion. I drove this same bus back in 1989 when I worked at a dealership that got it. I took it home for lunch to show my wife. Back than we could only dream of owning it. Ten years later, in well used average condition we picked it up for an $80.00 donation to a local VW club "The Hoosiers Volks" in Indiana. The previous owner left it in gear while towing it behind a motor home, and clipped a large landscaping rock, taking out the left rear quarter and bumper.

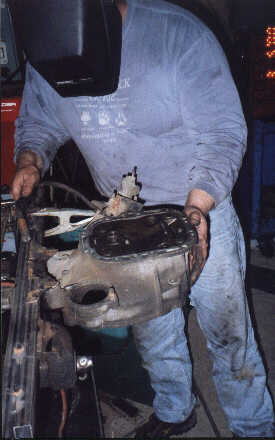

Fabricating the engine mount My main motor mount is made from two 2 inch channels welded together, with one roughly 4 inches longer on each end. Then I make 2 "U" shaped cradles from flat steel with two holes, one side getsnuts welded to the outside. It attaches to the two ears on the top of the transmission bell housing. The first conversion I did used one that I removed from a 72-79 type 2. This is where I got the idea from. This pic shows me tacking the U plate to the channel with a spare bell housing bolted in place.

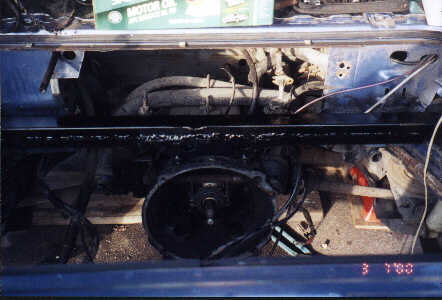

Installed engine mount This pic shows the completed mount. It is held up from the two main channels that run front to rear on the Vanagon. I cut two square windows in the sheet metal, exposing the top of the channels to the engine compartment approximately 5 inches back from the firewall.

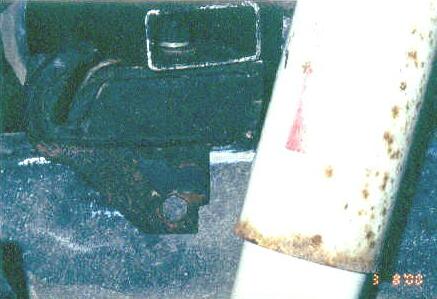

Installed engine mount This is the stock motor mount from the Vanagon. I cut one side of the flat section off, flush. This gets bolted to the frame last after the rear mount is installed. The stud end goes into the top, longer section on the channel.

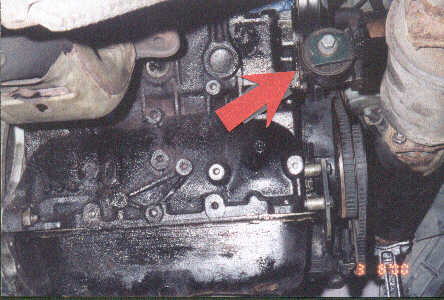

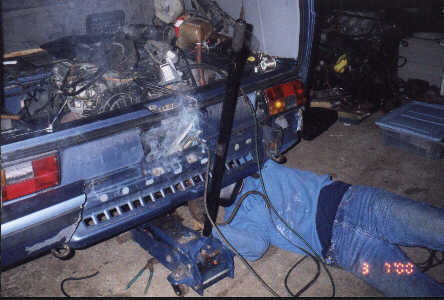

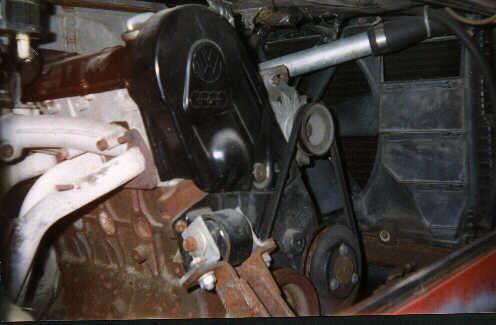

See Rob weld! Rear engine mount The only other mount I use is from an early A1 (rabbit, jetta) This mount bolts just under the head into the block on the timing belt side. An "L" shaped plate is welded under the license plate window on the inside the engine compartment to distribute the stress. This plate is 12-14 inches long. From this point to the engine motor mount is about 7-9 inches. I have two 3 inch sections of channel welded together, and two "L" brackets welded to them to make up the difference. The nice thing about this set up is this section is bolted to the channel on the van and the other end is bolted into the mount, can be completely removed for future engine removal.

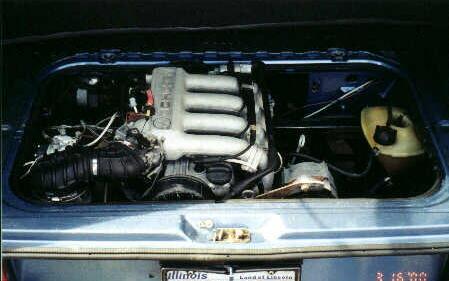

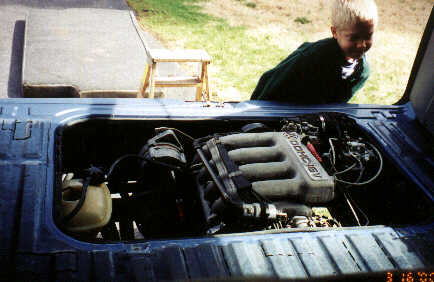

Completed installation Completed installation Here's a couple of photos of the completed installation of the 2.0L, 16 valve powerplant.

Rob Winterkorn
